Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

  • 1
  • 2
  • 3

Model Number : PH-1

Type : Selective Pallet Rack,Drive-In Pallet Rack,Multi-Level,Tire Rack,Post Pallet

Finish : Color Powder Coated,Powder Coating/Galvanised,Lead free expoxy electrostatic powder coating,Colorful powder coating

Supply Ability : 100 Sets 35 days

Use : Warehouse Rack,industrial,Supermarket,warehouse storage

Brand Name : Peterack

Feature : Corrosion Protection,Suitable for Outdoors,Secure,Esd Protection,Multi-function

Packaging Details : Wooden pallet with wrap around film packing

Payment Terms : T/T

Material : Steel,Metal,High Quality Steel,Mild steel Q235

Depth : 1.5-2.5mm,800-1200mm,as your request,CAN BE CUSTOMIZED,800mm

MOQ : 20 Sets

Delivery Time : 1 month

Weight capacity : 500-4000kg/level,1000-4500 kg/layer,CAN BE CUSTOMIZED,175kg,100-1000kgs

Structure : Easy Assemble,Assemble or welded,KD Structure,Knock down structure/Pre-assembled,Pre-assembled/Welded frame

Place of Origin : Jiangsu, China

Product name : Warehouse Storage Pallet Sliding Rack,pallet rack shelving,Steel Customized Adjustable Selective Pallet Storage Warehouse Racks,Warehouse equipment storage tear drop pallet rack systems,Heavy duty adjustable storage tire/truck rack/racking for sale

Price : USD$ 0.8-1.15/kilograms

Height : 1000-12000mm,4000mm,2000-6500 mm,2-16m,1200-2500

Certification : CE, ISO9001

Style : selective pallet rack,Adjustable Shelf Height,Heavy Duty Selective Shelf

Surface treatment : Powder Coating,Powder Coated,Galvanized,Electrostatic Spray,Powder Coating/EPOXY

Size : Customer Size,Customize,standard/customized,L2700*W1000*H4000mm,according to capacity

Usage : Warehouse Storage System,Tool Rack,Warehouse Rack,Heavy load storage rack

Width : 2000-3300mm,900-1200 mm,D800/1000,According to your requirments,60"

Packing : Customers' Request,Knockdown,Beam and upright in bubble film,shelf in export cartons

Design : CAD Drawing as your warehouse layout,stackable pallet rack,Humanization design

Color : Blue,etc,Blue/Orange/Grey or as your requirement,orange,grey

Name : Garage Shelving Supermarket Gondola Metal Storage Rack Shelf,pallet racks

Contact Now

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity


Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

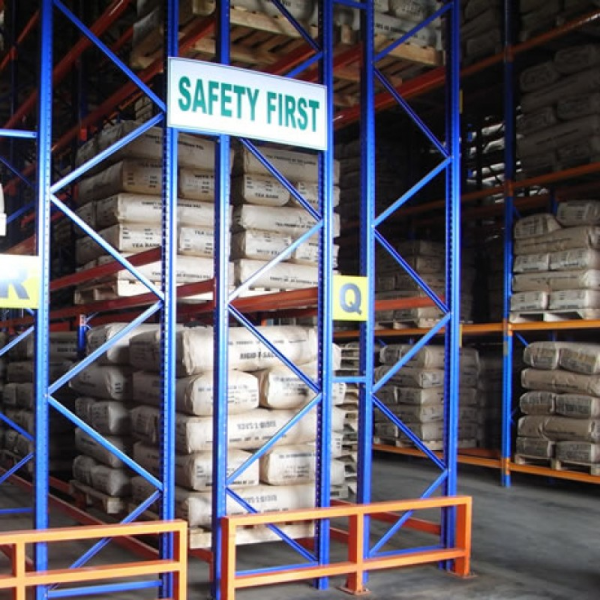

A Robust Warehouse Racking System Designed for Space-Saving Storage

This heavy-duty racking system is engineered for very narrow aisle (VNA) operations, offering a high-density storage solution that supports palletized goods and is compatible with specialized three-directional forklifts. By minimizing aisle widths to between 1500 mm and 2000 mm, the configuration significantly expands the available storage area, leading to a marked improvement in overall space efficiency.

Primary Advantages of the Narrow Aisle Racking System:

  1. Superior Space Efficiency & Enhanced Storage Density
    With aisles as compact as 1.5 meters (approximately 5–6 ft), this system can achieve up to 60% more pallet locations than conventional wide-aisle alternatives. It is particularly suited for warehouses where floor space is constrained or comes at a premium.

  2. Full Vertical Storage Utilization
    Designed to extend up to the maximum clear height of the building—typically 12 meters or more—this racking solution makes full use of the available cubic space, effectively reducing unused overhead volume.

  3. Greater Pallet & SKU Holding Capacity
    The system supports the storage of a larger number of pallets and a broader range of product lines within the same floor area. This helps avoid the high costs associated with warehouse expansion while substantially increasing total storage throughput.



Product Name
Storage Rack System
Style
VNA Pallet Racking
Brand
Peterack
Colour
Blue,orange,green
Material
Q235 Steel
Place of Product
Jiangsu Province,China
Feature
Corrosion Protection
Packing
Export Package
Size
Customizable
Application
Widely used in heavy industries


Detalis Images

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Upright Parameters
specification(mm) Thickness(mm) Loading(kg)
W80*D60 1.8-2.0 4000-6000
W85*D67 1.8-2.3 7500-12500
W90*D60 1.8-2.5 8000-10000
W90*D70 1.8-2.5 10000-12000
W100*D70 2.0-2.5 11000-14000
W120*D95 2.3-3.0 17000-21000

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity
Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity
Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity
FAQ

Space-Saving Warehouse Racking System with Heavy-Duty Load Capacity


1. Q: Are you a manufacturer or a trading company?
A: We are a dedicated manufacturer specializing in warehouse storage equipment. Since entering the industry over 15 years ago, we have been providing reliable racking systems and display solutions to customers in markets around the world.

2. Q: Where are your products manufactured?
A: All of our products are produced at our manufacturing facility in Nanjing, China, where every stage—from raw material processing to final inspection—is managed under strict quality control.

3. Q: What is your average production time?
A: Most standard orders are completed within 20 working days. Production time may vary depending on the order size, product complexity, and customization requirements.

4. Q: Which trade terms can you provide?
A: We usually quote under EXW or FOB terms. If required, we can also arrange CFR, CIF, DDP, or other Incoterms to match your preferred shipping method.

5. Q: Can you manufacture customized racking systems?
A: Absolutely. We offer complete customization services, including product dimensions, load capacity, surface finish, colors, and structural design. Simply provide your drawings or project requirements, and our engineering team will develop a suitable solution.

6. Q: What materials do you use?
A: Our storage racking is primarily manufactured from high-quality structural steel for maximum strength and durability. For retail displays or special applications, we can also integrate materials such as wood, acrylic, tempered glass, or aluminum alloy.

7. Q: What is the difference between a starter bay and an add-on bay?
A: A starter bay is the first independent section of a racking system and includes two upright frames. An add-on bay is connected to the previous section and shares one upright frame, requiring only one additional frame. This configuration reduces material usage while making future expansion more economical. For example, a continuous 10-bay system consists of one starter bay and nine add-on bays.

8. Q: How are your products packed for export?
A: Each component is securely packed in knock-down form to optimize container space and lower freight costs. Steel parts are protected with PE film, bubble wrap, or other protective materials before being packed in heavy-duty export cartons. Plywood cases, wooden crates, custom labels, and other packaging options are available upon request.
